Consolidated Taxonomy Panel

Collapses several of a post type's taxonomies into one sidebar panel of chip fields, instead of one collapsible panel per taxonomy.

Seven taxonomies on a post type means seven panels. The document sidebar becomes a scroll, and the fields an editor actually uses are below the fold.

Which taxonomies share the panel is chosen in the editor, per post type, by an administrator looking at the sidebar they are fixing.

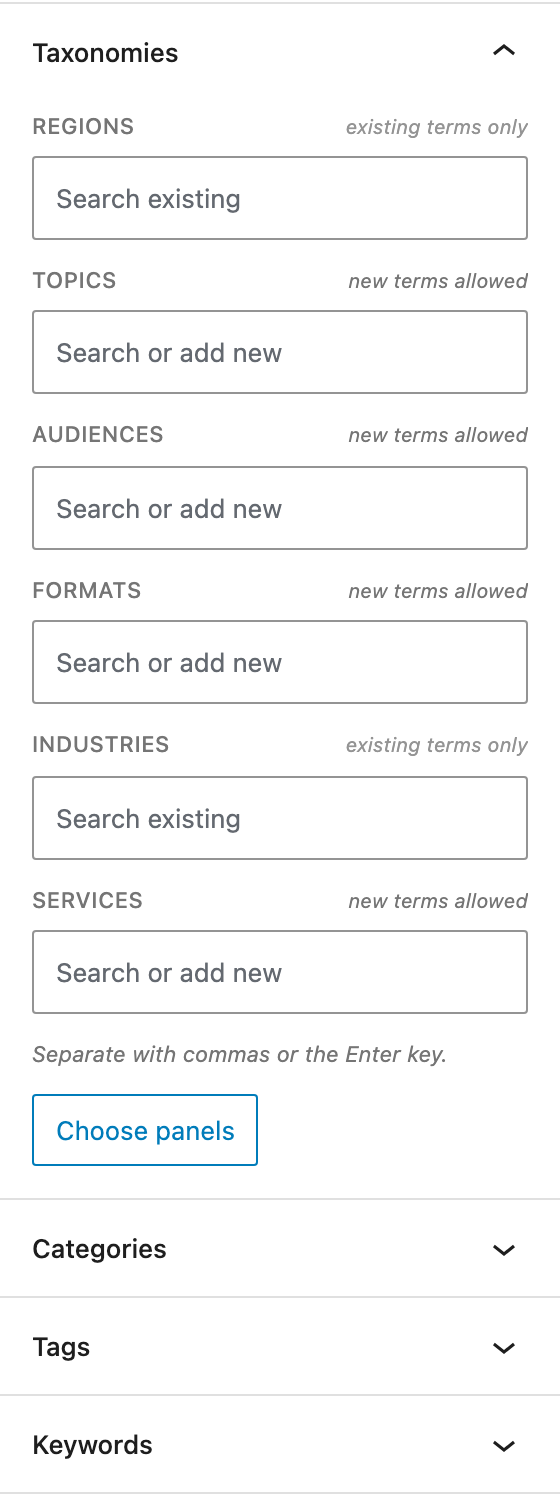

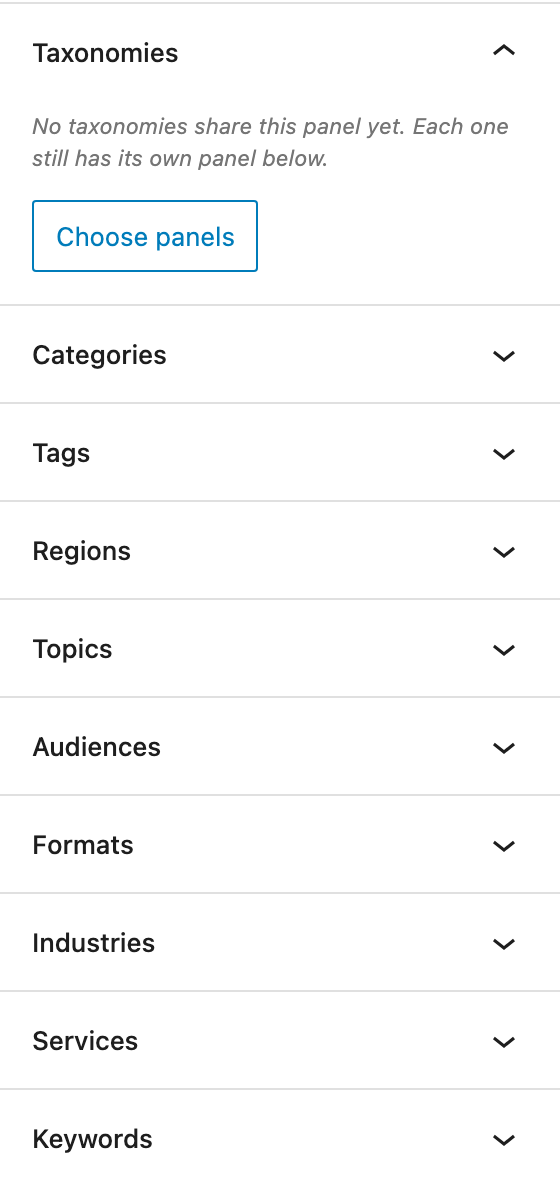

Before and after, on the same post type, as an administrator sees it. Nine taxonomy panels become three, because six were ticked into the panel — Categories, Tags and Keywords were left alone, so they keep theirs:

Off	On

The empty Taxonomies panel in the "off" column is how the feature is found: administrators always see it, everyone else only sees it once it holds something.

How a taxonomy joins the panel

In the editor, on the post type whose sidebar you are looking at. Open any post of that type. The Taxonomies panel is in the document sidebar; an administrator sees it even when it is empty, with a Choose panels button.

Tick a taxonomy and its separate panel disappears and its chip field appears, immediately. Untick it and the panel comes straight back. Nothing is saved until Save — Cancel puts the sidebar back the way it was.

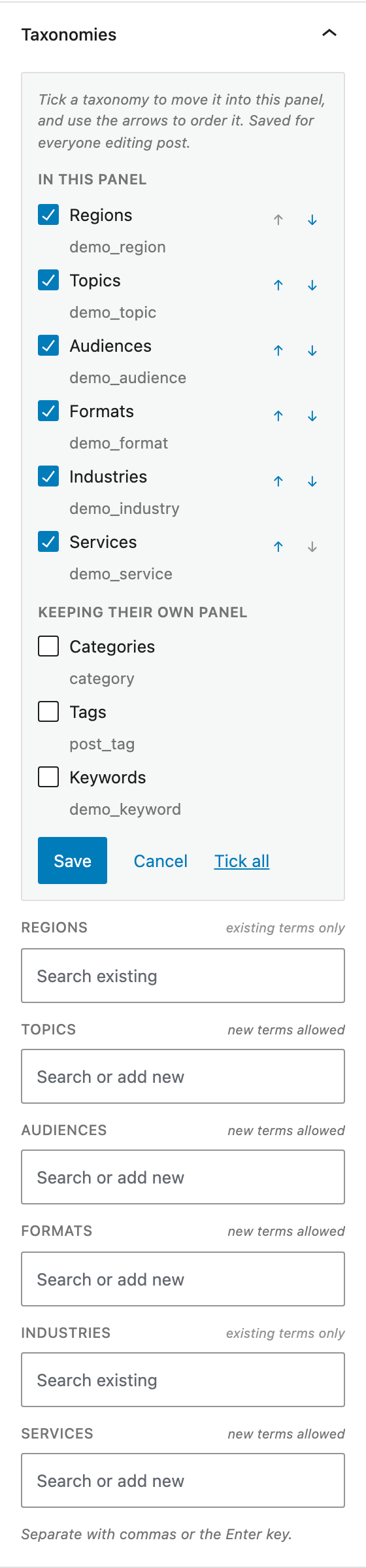

The picker is in two parts. In this panel lists what is consolidated, in the order the panel shows it; Keeping their own panel lists everything else. Each row is labelled exactly as its own panel is labelled in the sidebar, with its slug underneath, so a line in the list and a panel on screen are unambiguously the same thing. Tick all / Untick all is there for the crowded post types this feature exists for.

The fields below the picker update as boxes are ticked and rows are moved, so the panel being built is visible while it is being chosen.

Ordering the fields

The ↑ and ↓ buttons on each row in In this panel move that taxonomy up or down. The arrows at the two ends are disabled rather than hidden, so the rows never shift under the pointer, and each move is announced to screen readers ("Pet Statuses moved to position 3 of 4").

They are buttons rather than a drag handle on purpose. Dragging needs a keyboard path built alongside it to be usable at all, and at the five-to-twelve rows this picker is for, the buttons are quicker than either.

Ticking a taxonomy adds it to the end of the panel, never into its registration slot — re-sorting on every tick would silently undo an order you had just arranged.

The choice is per post type

pet-type can be on both pet and stray. Seven taxonomies on pet is a sidebar worth consolidating; the two on stray are not. So the setting is keyed by post type, and ticking a taxonomy on one leaves the other alone.

That is also why the setting is not on the taxonomy: a taxonomy has one registration and cannot hold two different answers.

It is a site setting, not a preference

One save changes the sidebar for everyone editing that post type. It is stored in the yoko_taxonomy_panel option, not in user meta, and needs manage_options — filterable:

add_filter( 'yoko_taxonomy_panel_capability', fn() => 'edit_others_posts' );

Everyone else just sees the result: no picker, no button, and the panel only appears once something is in it.

Which taxonomies are offered

Every taxonomy attached to the post type with both show_ui and show_in_rest. A taxonomy without show_in_rest is not offered, because the block editor cannot edit it at all — consolidating it would hide it rather than move it.

A panel that has never been ordered by hand shows its fields in the order the taxonomies are attached to the post type, which is the order their separate panels were already in. To move the consolidated panel itself among the sidebar's other panels, see Sidebar Panel Order.

What the panel does

Taxonomy	Field	Adding new terms
Flat (tags-like)	Chip field, search as you type	Yes, if you can create terms
Hierarchical (categories-like)	Chip field, search as you type	No — assign only

Hierarchical taxonomies are assign-only on purpose: a term typed into a chip field has no parent, so it would land at the root of the tree, which is almost never what someone meant. Use the taxonomy's own admin screen to add terms with a parent.

Clicking a field before typing lists the whole taxonomy, most-used first. The terms already on the most posts are the ones an editor usually wants, so they are the ones at the top. Terms nobody has used yet are still there, at the end — they just sort last. Typing switches the list to a search.

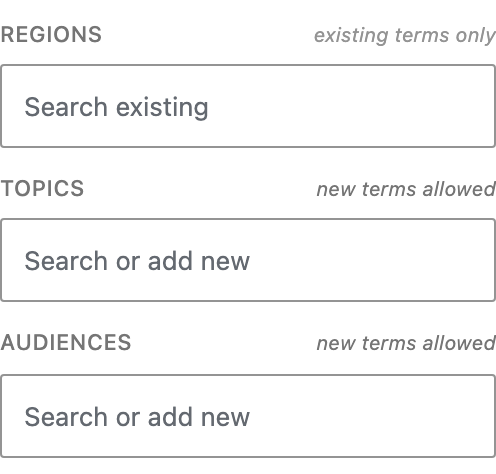

Every field says which it is. Consolidating taxonomies puts fields that look identical next to each other, so each one is labelled on the right of its title:

Marker	What typing a new name does
new terms allowed	Creates the term and attaches it.
existing terms only	Nothing — the field only attaches terms that exist.

Hover a marker for the reason: a hierarchical taxonomy points at its own admin screen, and a field you lack the capability for says so. If a name is typed into an existing terms only field anyway, the value is dropped and explained — "'Nowhere In Particular' was not added — Regions only accepts existing terms" — rather than quietly disappearing.

Terms whose names collide are qualified by their parent. A hierarchical taxonomy can hold "Boston" under both "Events" and "Offices"; the chips read Boston (Events) and Boston (Offices) so it is clear which one is attached. A name that is unique gets no parenthetical.

What is left alone

• Saving the post. The separate panels are hidden, never unregistered, so the terms travel exactly the path they always did.
• Taxonomies left unticked keep their own panel, next to the consolidated one.
• The same taxonomy on another post type. The choice is per post type.
• The taxonomy's own admin screens. Its show_ui is not changed, so its menu item, term list, and metaboxes are unaffected.
• Everything the panel does not own. The Summary section and classic metaboxes are untouched.

Ordering the panel itself

The consolidated panel is registered as a normal plugin panel, so Sidebar Panel Order can move it like any other. Its panel key is title:taxonomies, or title:<your title> if you renamed it.

Renaming the panel

add_filter( 'yoko_taxonomy_panel_title', fn() => 'Classification' );

WP-CLI

The headless equivalent, for a broken site, a scripted rollout, or confirming what the editor is actually reading.

wp yoko taxonomy_panel list
wp yoko taxonomy_panel list --post_type=pet
wp yoko taxonomy_panel add --post_type=pet --taxonomy=pet-type
wp yoko taxonomy_panel remove --post_type=pet --taxonomy=pet-type
wp yoko taxonomy_panel order --post_type=pet --taxonomies=pet-type,altered,pet-age
wp yoko taxonomy_panel reset --post_type=pet --yes

post_type  position  taxonomy    label
pet        1         altered     Animal Altered
pet        2         pet-age     Pet Ages
pet        3         pet-type    Pet Types

add appends and order sets the whole sequence at once — a slug left out of order is removed from the panel. Both refuse a taxonomy the block editor cannot edit on that post type, and say which ones it can.

Hooks

Hook	Purpose
yoko_taxonomy_panel_capability	Capability required to change the panel. Defaults to manage_options.
yoko_taxonomy_panel_title	The panel heading.

How the separate panels are hidden

With CSS, and nothing else. The panel is marked .is-yoko-taxonomy-duplicate and the editor stylesheet hides it; it stays mounted and registered.

Two better-looking mechanisms were rejected for the same reason. Setting visibility.show_ui to false in the /wp/v2/taxonomies response, and calling removeEditorPanel(), both genuinely remove the panel — and neither can be undone in the same page load. The picker needs exactly that: tick a box, see the panel go, change your mind, see it come back. So the panel is hidden rather than removed.

The consequence worth knowing: a hidden panel is still there, still holding the same terms, still part of what the editor saves. Saving a post is completely unchanged by this feature — whatever is ticked, the terms travel the same path they always did. The cost is that a hidden panel still loads its terms, which is one wasted request per consolidated taxonomy.

Panels are matched to taxonomies by title, using the same labels.menu_name string the editor puts on the panel. If one refuses to hide, that is where to look:

// In the editor console.
window.yokoTaxonomyPanel.choices;
document.querySelectorAll( '.components-panel__body-toggle' );

Classic editor and page builders

Classic editor: unaffected. This is a block editor sidebar panel; the classic editor shows each taxonomy's metabox as it always has, and those are already drag-sortable per user.

Beaver Builder: unaffected. Nothing here touches the front end, so the feature is theme- and builder-independent.

Limitations

• A taxonomy without show_in_rest is never offered — the block editor cannot edit it at all, so consolidating it would hide it rather than move it. It keeps its own metabox.
• A hidden panel is still mounted, so it still loads its terms: one wasted request per consolidated taxonomy. The price of being able to untick a box and see the panel come back.
• Hierarchy is shown only where names collide. A chip field is a flat list by nature; the tree lives on the taxonomy's admin screen.
• The panel starts collapsed, like other plugin panels. WordPress remembers each user's choice after that.

A test bed

dev/demo-taxonomies.php registers seven taxonomies on post — pre-ticking six of them in the panel and deliberately leaving one out, so the difference is visible — and seeds their terms, including a name that exists under two different parents so the disambiguation can be seen. It is a throwaway; never put it on a client site.

Docker dev environment

./dev.sh up
docker compose -f dev/docker-compose.yml exec wordpress   cp /var/www/html/wp-content/plugins/yoko-core/dev/demo-taxonomies.php      /var/www/html/wp-content/mu-plugins/

WordPress Playground

npm run playground:panel-order

The generated blueprint already includes it, so the printed link opens a site with the seven taxonomies in place. To use the file on its own instead, paste it into Plugins → Plugin File Editor, or write it to /wordpress/wp-content/mu-plugins/demo-taxonomies.php from a Blueprint writeFile step.

Start the terms over with wp option delete yoko_demo_taxonomies_seeded.

The file also carries commented examples of renaming the panel, opening the picker up to editors, and getting back to the before.

tip

Prefix demo taxonomy slugs. An unprefixed slug can collide with a field the REST posts controller already owns — format, title, status, type, parent, template — and WordPress logs "conflicts with an existing property on the REST API Posts Controller". demo-taxonomies.php prefixes everything for that reason.

Verifying a change

npm run test:js                              # unit tests for the store and term helpers
lib/bin/phpunit --filter TaxonomyPanelTest   # storage, validation, per-post-type isolation
./dev.sh up                                  # plus the test bed above
node scripts/taxonomy-panel-e2e.mjs          # drives the real editor

The end-to-end script checks that the separate panels are hidden, that one chip field exists per consolidated taxonomy in the post type's own order, that a taxonomy left out keeps its own panel, that an assignment survives a save and reload, that a new term can be created on a flat taxonomy but not a hierarchical one, that every field is marked with whether it takes new values, that a dropped value is explained rather than vanishing, and that colliding names are qualified.

The screenshots on this page

They are generated, not taken by hand — documentation images go stale silently. With the dev environment and the test bed up, this rewrites them in place:

npm run docs:taxonomy-panel-shots

Rerun it whenever the panel's UI changes, and commit what falls out. It writes taxonomy-panel-before, -after, -markers and -picker into website/docs/admin/img/, each clipped to the sidebar panels at 2× and taken with the panel configured from scratch through its own REST route — so the images cannot drift from the behaviour in the same commit.
