Theme Icons

Drop SVG files into the active theme's /icon folder and they appear in the Icon block's library, beside the ones WordPress ships.

WordPress 7.1 has a registry for icons but no way to fill it from a theme — every icon needs its own wp_register_icon() call in PHP. Yoko Core reads the folder instead. Add a file, and the icon is there.

The theme's collection sits under the WordPress one, named after the theme.

Adding an icon

1. Put arrow-right.svg in wp-content/themes/<your-theme>/icon/.
2. Add an Icon block, or select one and press Replace.
3. Pick the theme's collection in the sidebar of the Icon library.

That is the whole workflow. Nothing to register, nothing to clear.

The file	Becomes
arrow-right.svg	An icon named theme/arrow-right, labelled Arrow Right
Badge Star.svg	theme/badge-star, labelled Badge Star
Café.svg	theme/cafe, labelled Cafe

icons/ works as well as icon/. Both folders are read, and a child theme wins: a file in the child replaces the parent's file of the same name, exactly as a template does.

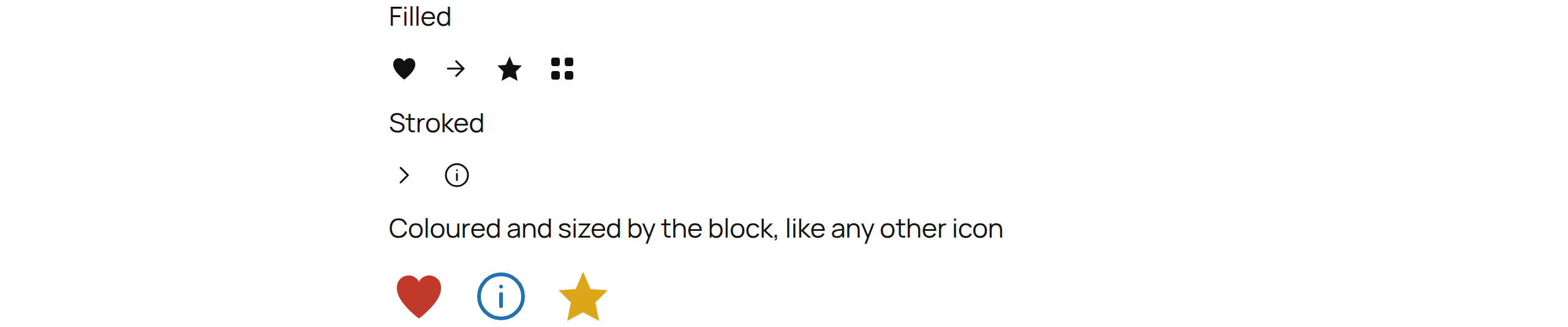

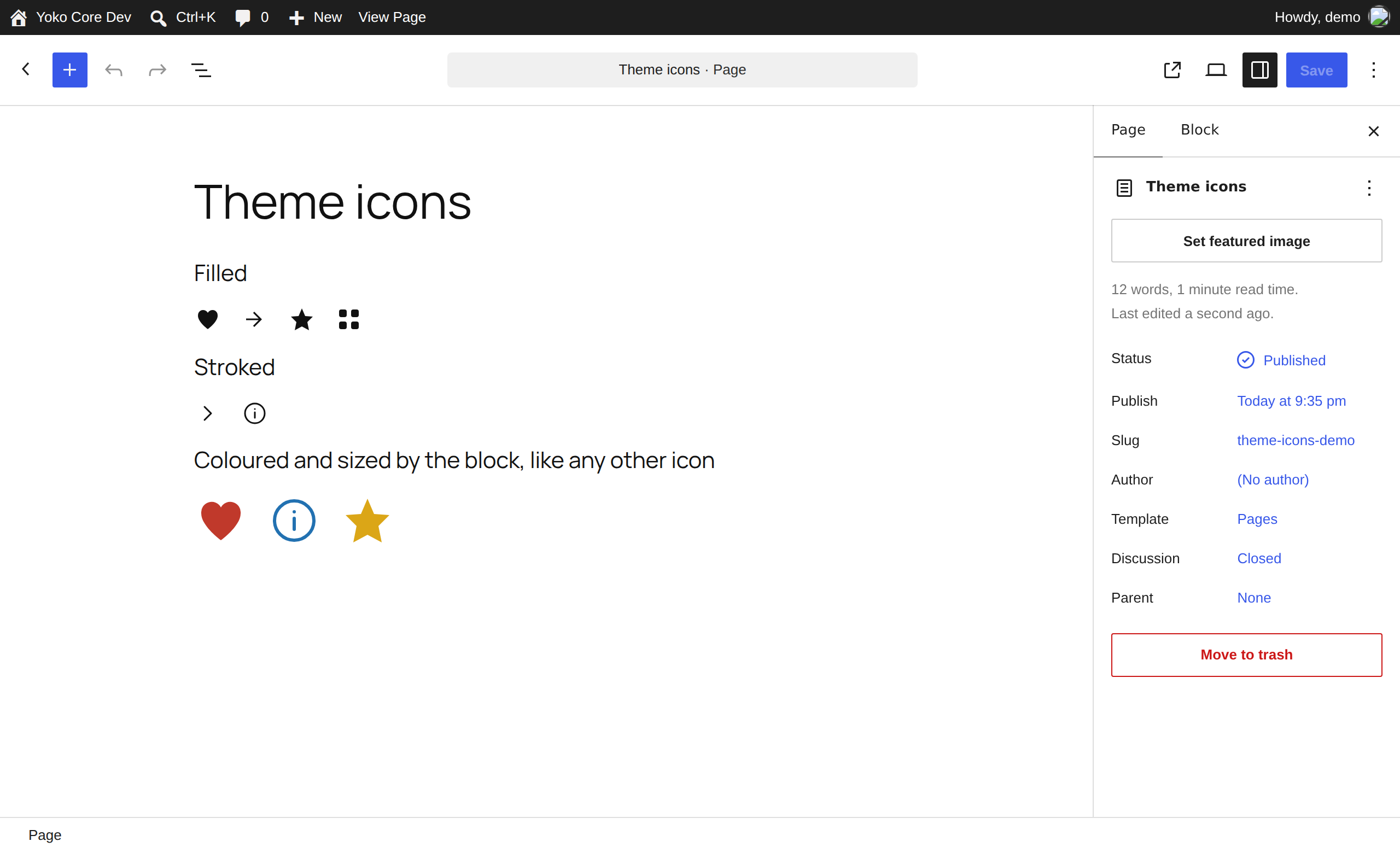

What it looks like

Icons behave like core's in every way — colour, size, alignment, flip and rotation all come from the block, not the file.

Colour is currentColor, so an icon takes the colour set on the block. Outlined icons follow it too.

Which files work

WordPress does not store your SVG. It runs it through a sanitizer that keeps <svg>, <path> and <polygon> and a handful of attributes, and silently deletes everything else — then registers the icon anyway. A grouped or stroked or circle-based icon comes out as a named, empty square.

Yoko Core rewrites each file into the part that survives, so most of what that sanitizer would have thrown away is kept:

In your file	WordPress alone	With Yoko Core
One <path>, filled	Works	Works
<g> wrapper, with a transform	Transform dropped — icon draws in the wrong place	Pushed onto the shapes, drawn correctly
<circle>, <rect>, <line>, <polyline>, <ellipse>	Deleted — icon is blank	Rewritten as paths
Stroked outline (Feather, Lucide, Heroicons outline)	Stroke dropped — icon is invisible	Works
<title>, <desc>, comments	Deleted	Dropped, harmlessly
fill="currentColor" on the <svg>	Dropped	Moved onto the paths, where it survives

Some things genuinely cannot be kept. Those files are left out rather than registered blank, and every one is reported:

Not registered	Why
Gradients and patterns	The paint lives in a <defs> the sanitizer deletes
<text>	There is no way to express text as a path here
<use>, <mask>, <clipPath>, <filter>	All deleted by the sanitizer
opacity below 1	Not an allowed attribute, so the icon would draw at full strength
Filled and stroked shapes in one icon	Only one of the two can be restored
A <script> element, an on… handler, a javascript: URL	Refused outright
A DOCTYPE or entity declaration	Refused outright
Malformed XML, an empty file, or one over 100 KB	Not a usable icon
No viewBox and no width/height	Nothing to scale the icon by

When an icon does not appear

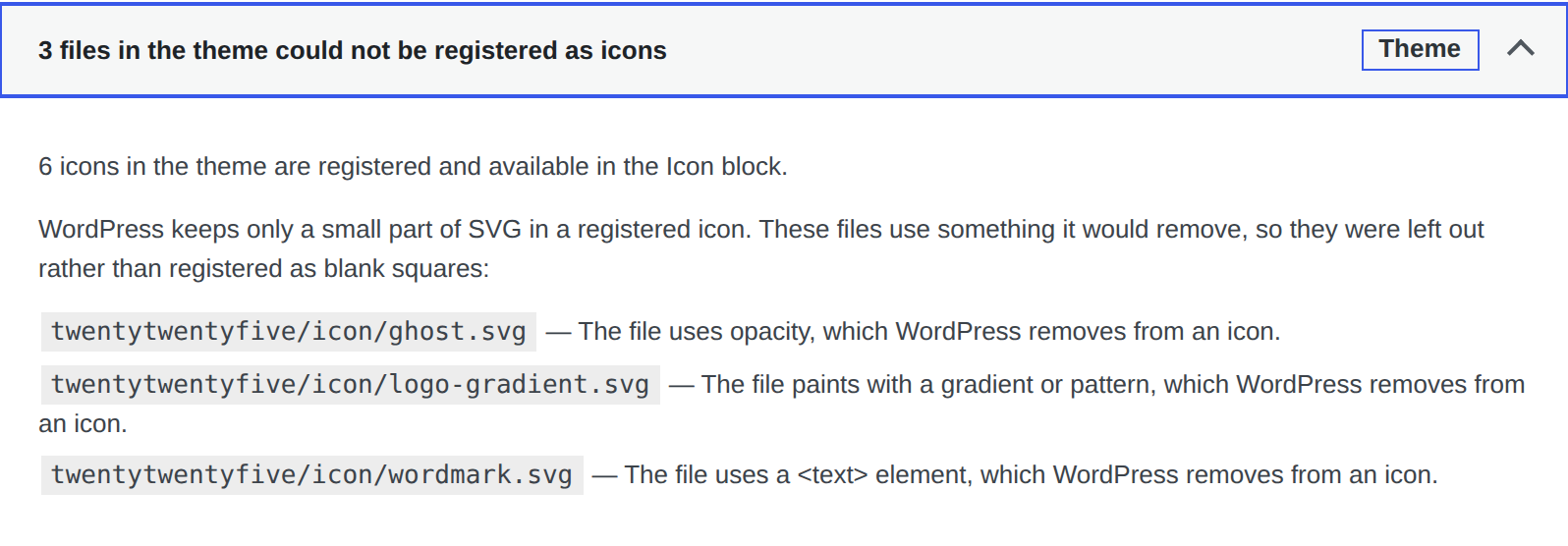

Look at Tools → Site Health. Every file that was left out is listed there with the reason, so it is one screen rather than a guess.

The same list is in Site Health → Info → Yoko Core: Theme icons, which is what to paste into a ticket, and on the command line:

wp yoko theme_icons              # what registered, and what did not
wp yoko theme_icons --format=json
wp yoko theme_icons flush        # re-read the folder now

Fixing a refused file

Most refusals are fixed in the drawing program. Outline Stroke (Illustrator) or Flatten (Figma) turns strokes and shapes into filled paths, and flattening transparency removes the opacity. A file with real text needs the text converted to outlines.

Block editor, classic editor and Beaver Builder

The Icon block exists only in the block editor. There is no Icon block in the classic editor and none in Beaver Builder — but the icons are registered site-wide, so a template, a shortcode or a Beaver Builder module can render one in PHP:

echo wp_get_icon( 'theme/arrow-right', array(
	'size'  => 24,
	'class' => 'my-inline-icon',
	'label' => __( 'Read more', 'my-theme' ),
) );

Passing label gives the SVG role="img" and an aria-label. Leaving it out marks the icon aria-hidden, which is right for an icon next to text that already says the same thing.

Outlined icons need the stylesheet

An outlined icon's stroke is restored by a small generated stylesheet, which is printed on the front end and in the editor. In a context that loads no styles — an email, a PDF — an outlined icon renders as nothing. Filled icons are self-contained and work anywhere.

Performance

The folder is read once and cached. The cache is keyed on the files themselves — their names, sizes and modification times — so an edited icon is picked up on the next page load with nothing to clear, and an untouched folder is never opened. Switching themes and updating a theme both clear it outright.

A theme is capped at 300 icons. Past that the rest are skipped and Site Health says so.

Requirements

The icon registry is a WordPress 7.1 feature. On an older WordPress there is no registry to fill and this does nothing at all — no collection, no scanning, no cost. A theme with no icon or icons folder is likewise left completely alone.

PHP's DOM extension is needed to read the files. It is present in every standard PHP build.

For developers

Icons are registered as theme/<name> in a collection labelled with the theme's name. Rewriting happens in YokoCo\ThemeIcons\Normalizer, and the fixtures in tests/fixtures/theme-icons/ are both the test cases and a worked example of each kind of file.

Hook	Type	Use
yoko_theme_icons_directories	filter	The folder names scanned. Default [ 'icon', 'icons' ]
yoko_theme_icons_manifest	filter	The icons after rewriting, keyed by name. Change a label, add one, drop one
yoko_theme_icons_collection	filter	The collection slug. Changing it renames every icon, so anything already saved stops resolving
yoko_theme_icons_stylesheet	filter	The generated rules for outlined icons, before they are printed

Deactivating Yoko Core unregisters the icons; the files are untouched, and any block referencing one falls back to rendering nothing until it is re-pointed.
